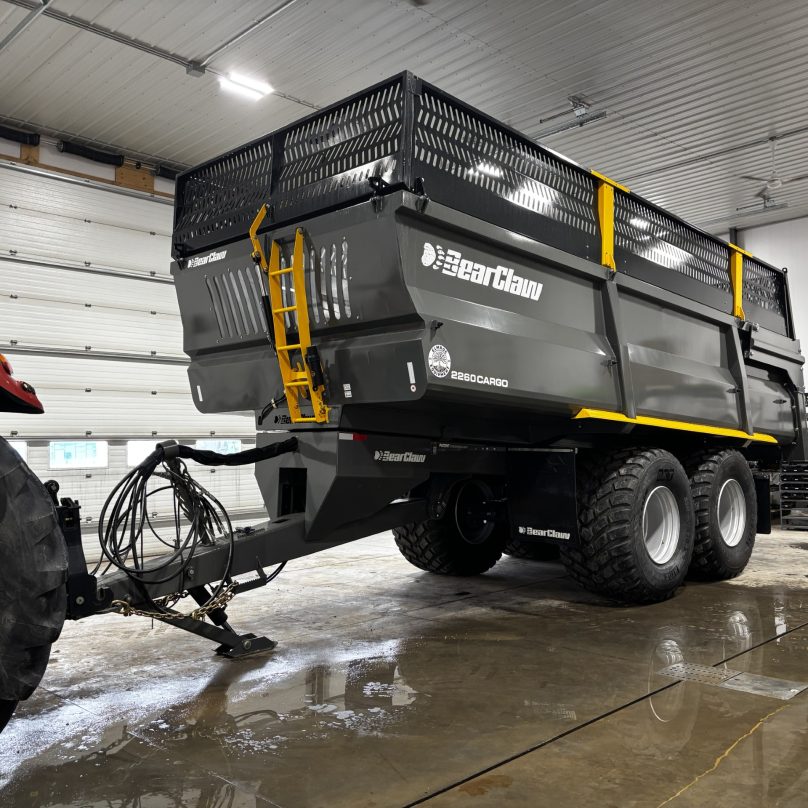

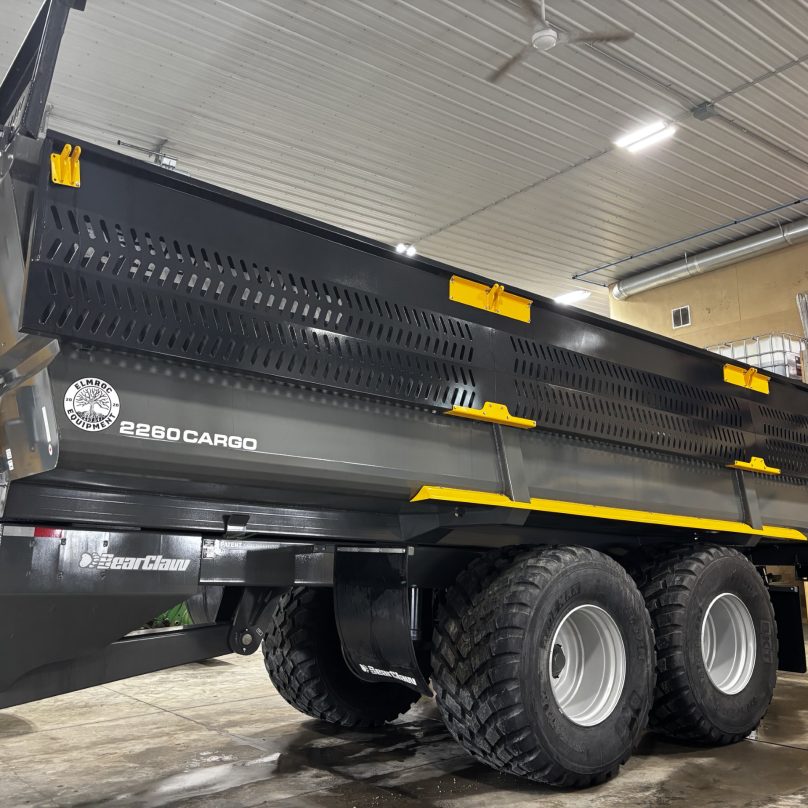

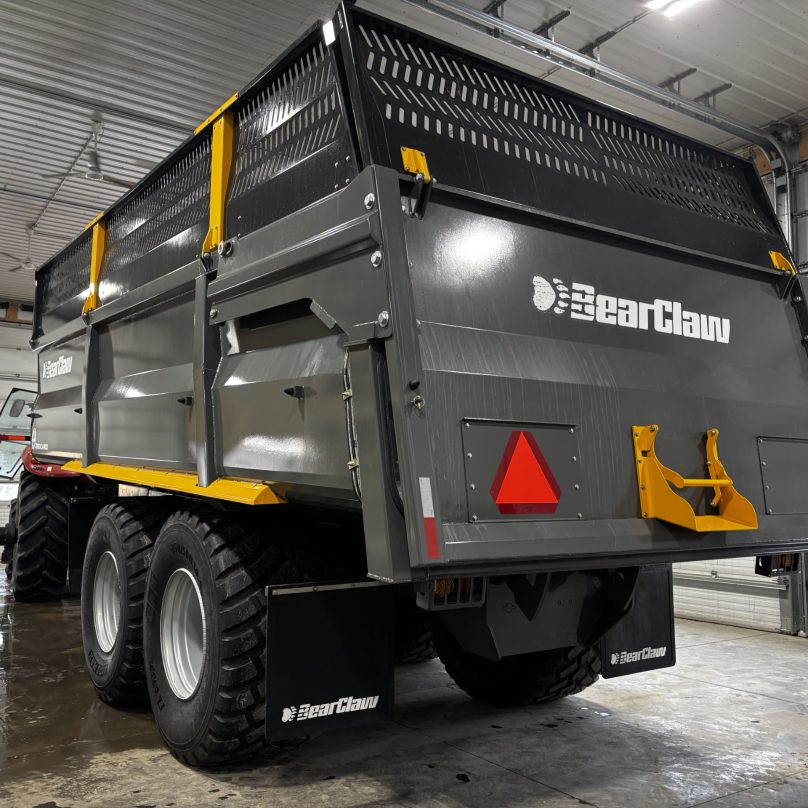

BearClaw Grain/Silage Trailers

Call to order a BearClaw Grain/Silage trailer, available sizes are 1440 (1400 cubic ft, 40 cubic meter), 1850 (1800 cubic ft, 50 cubic meter), 2260 (2200 cubic ft, 60 cubic meter), 2570 (2500 cubic ft, 70 cubic meters), 2880 (2800 cubic ft, 80 cubic meters) trailers.

STANDARD FEATURES

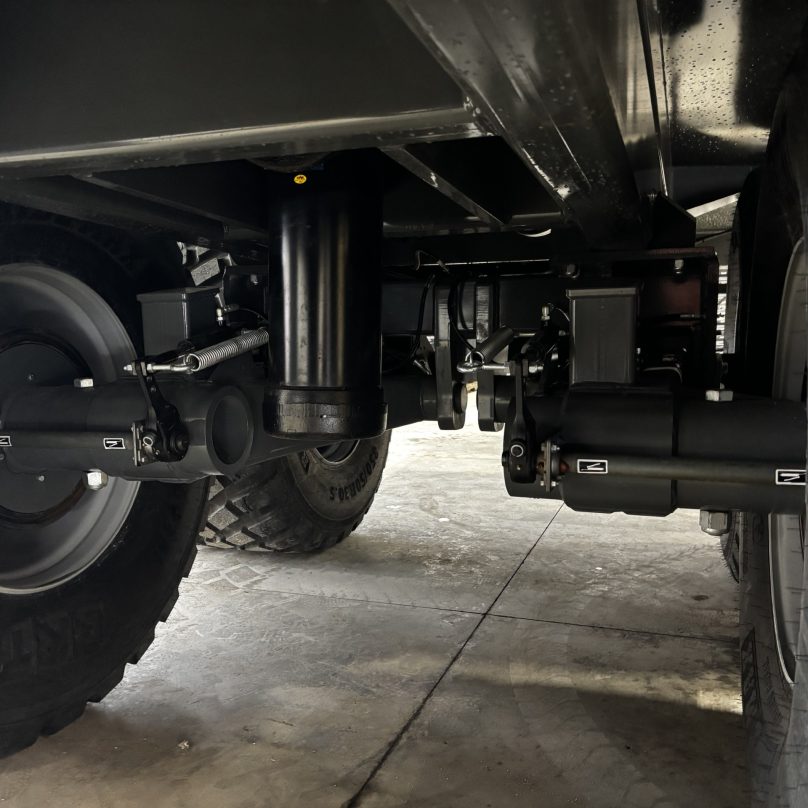

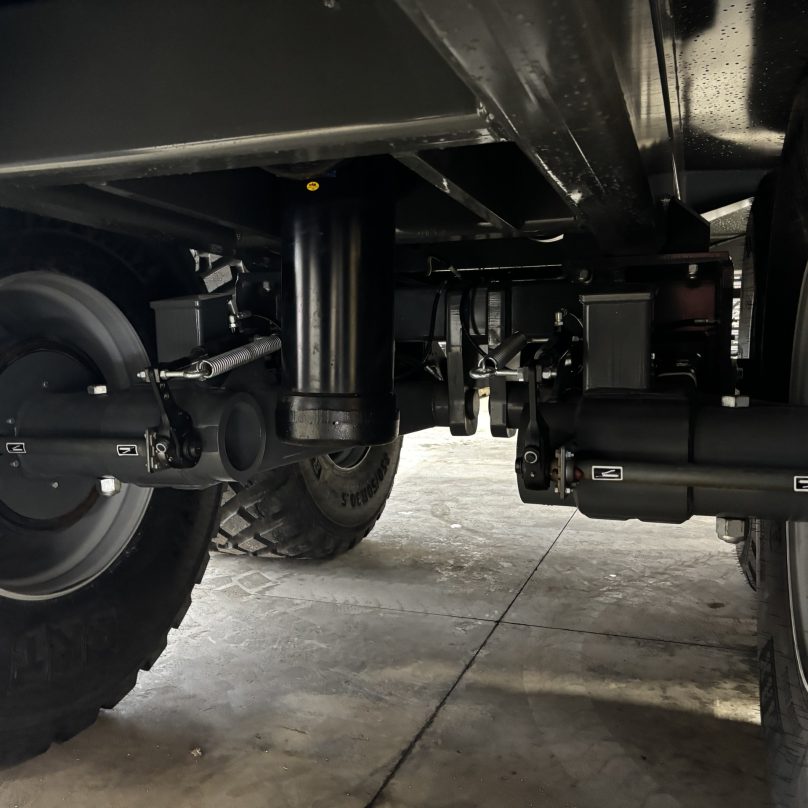

• Highway Stub Axles – ease of maintenance and parts availability

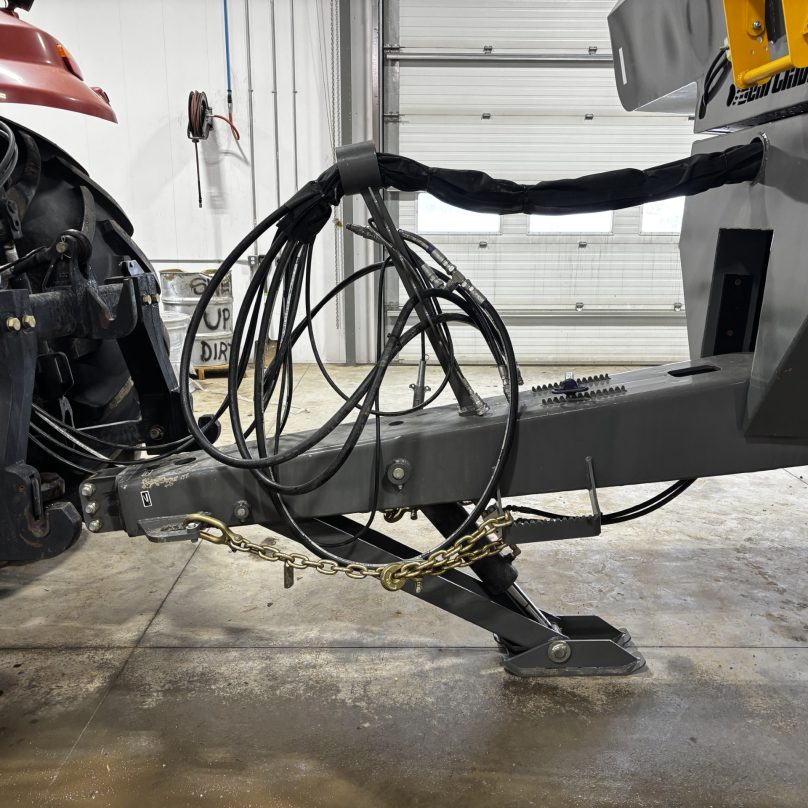

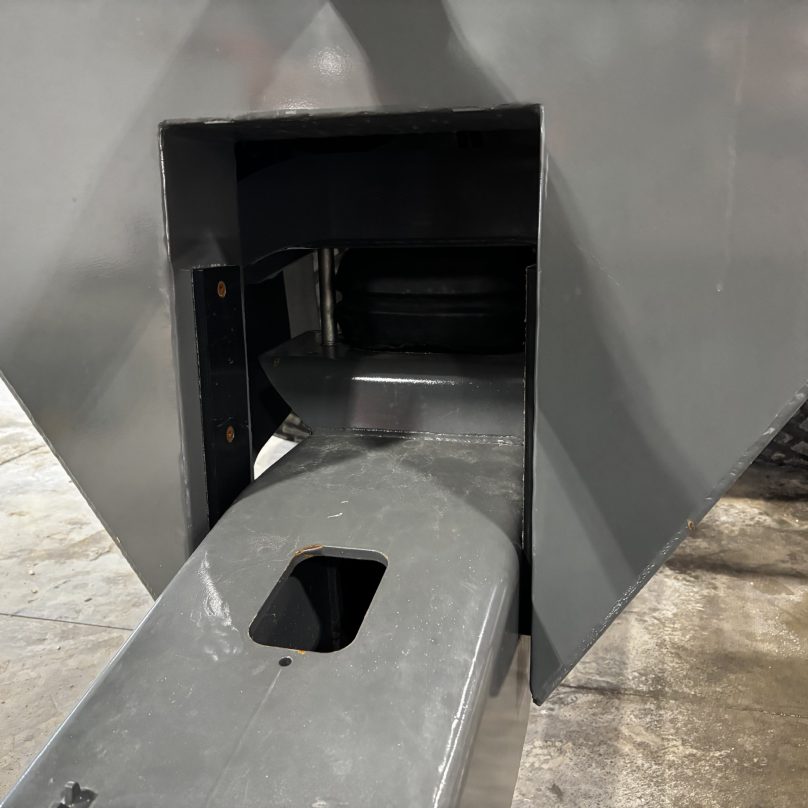

• Rubber Ride Hitch – dampens vibrations in the tongue when road travelling
• Single Multi Stage Hydraulic Lift – reduces oil capacity requirement
  – 1440 = 36.8L (9.8 USG)
  – 1850 = 43.8L (11.7 USG)
  – 2260 = 57.9L (15.4 USG) *30.6L (6.73 USG) with available slave cylinder option installed*

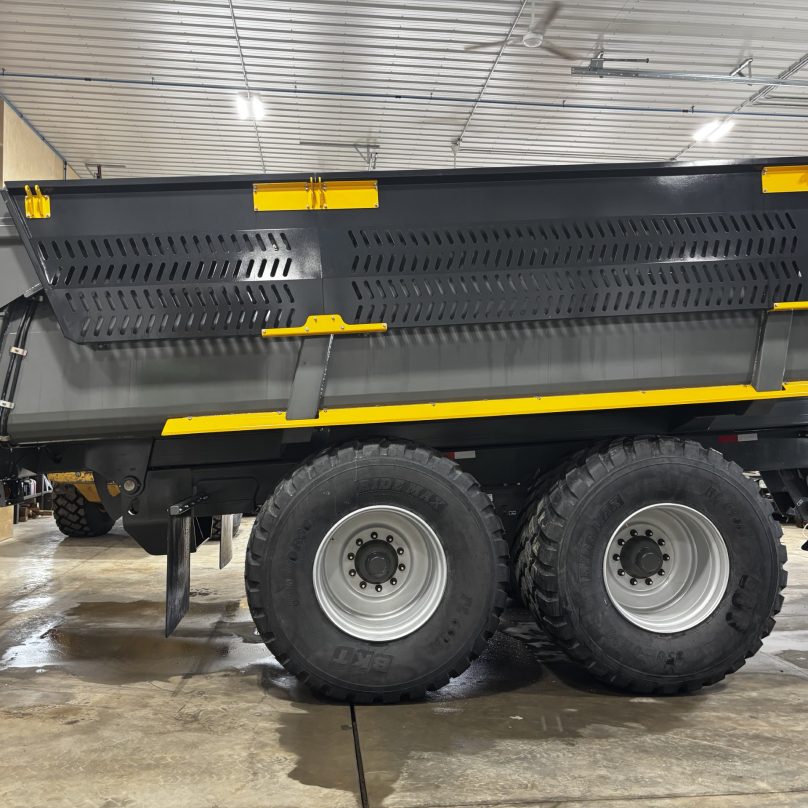

• “Drop Down” Side Extensions – allows for quick shifting between silage and grain hauling

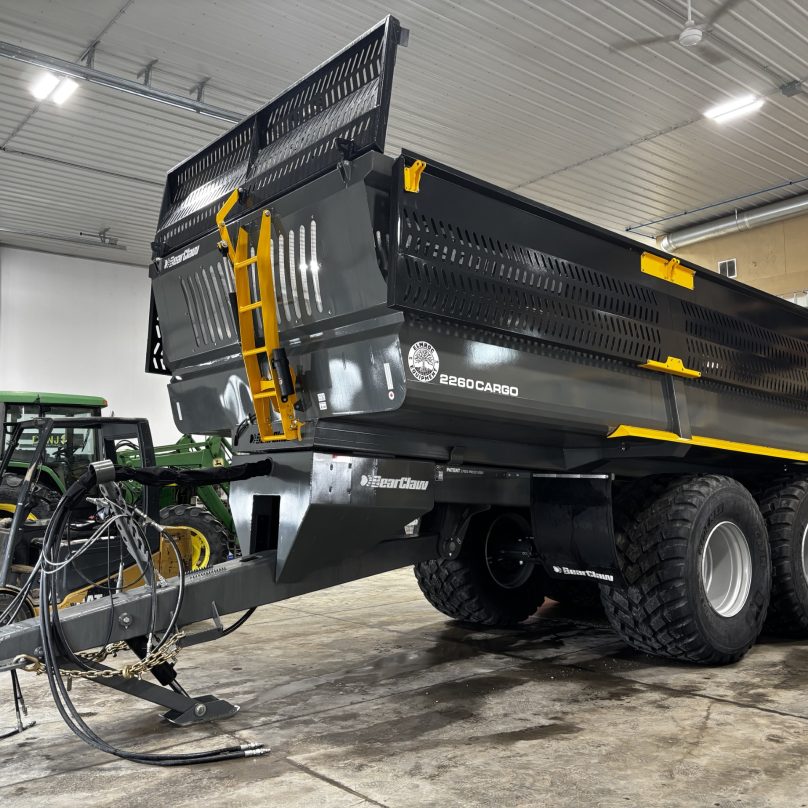

• Hydraulic Drop Down Front Grill
• Hydraulic Jack
• Road Lights
• Front and Rear Mud Flaps

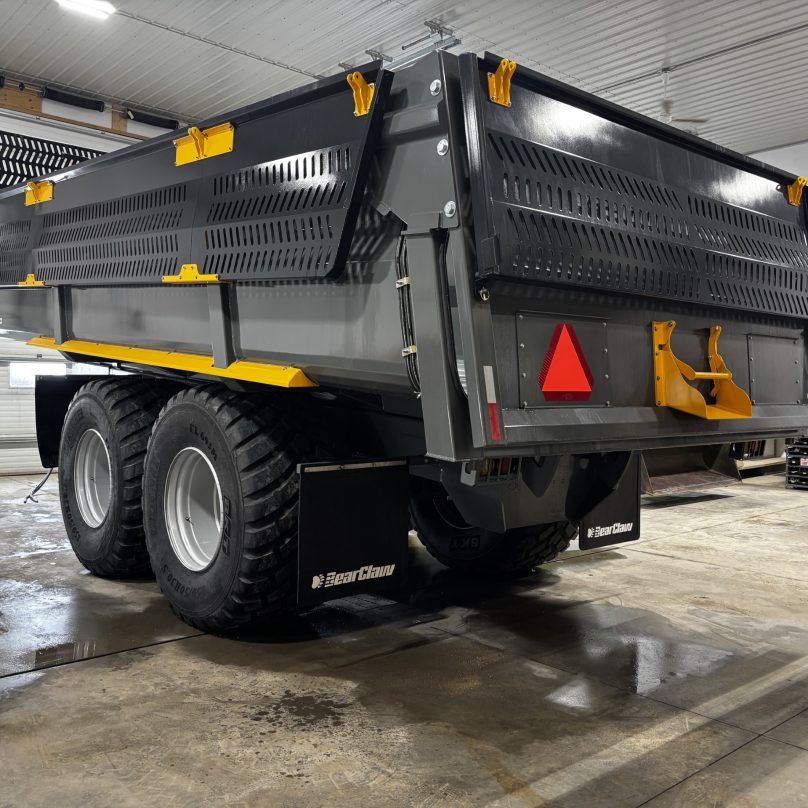

• Single Grain Door kit – installed on all tailgates for discharging grain, wheat, dry corn, etc.
  Tapered Body Design – helps to reduce drag on the sides when dumping – the load ejects sooner and at
  a lower dump height.

Brake Options

• Two wheel air brakes
• Two wheel hydraulic brakes
• Four wheel air brakes
• Four wheel hydraulic brakes
• Six wheel hydraulic brake

AVAILABLE UPGRADE OPTIONS

• Extra Grain Door Kit – includes two additional grain doors with chutes installed in tailgate
• Slave Cylinder Kit ( available on 1850 & 2260 models, standard on 2570 & 2880 models)
• Rear Bolt on Hitch – installed at rear of frame for light duty towing behind the trailer (includes pre-wired
  7-pin road light plug)
• Cat 4 Front Swivel Hitch – offered in a 1.5”ID or a 2” ID
• Wheel Packages   BASE      RECOMMENDED     UPGRADE
  Model 1440 –  650/55R26.5 – 710/50R26.5 – 800/45R26.5
  Model 1850 –  710/50R26.5 – 800/45R26.5 – 850/40R26.5
  Model 2260 –  750/60R30.5 – 850/50R30.5
